Space-E  Space-E/Press for Transfer Press Mold Design

Advantages of Introduction

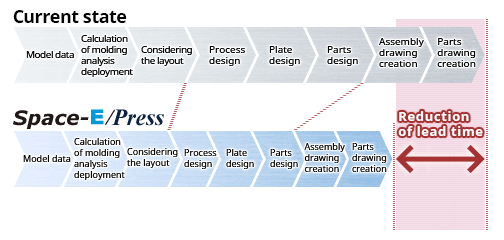

Reduction of Lead Time

The integrated 3D CAD/CAM/CAE system* can be used to easily create a blank trim deployment line. This can significantly reduce drawing process design time.
In addition, direct CAM processing of parts (punch/die) reduces the number of man-hours.
Space-E/Press significantly reduces lead time before completion of a mold in a streamlined production system from design to machining.

Reduction of Lead Time

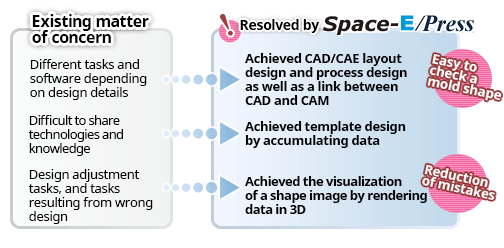

Reduction of Mistakes

Space-E/Press can reduce working losses due to wrong design that was an existing matter of concern.

Reduction of Mistakes

Introduction to Functions

Layout Design

Layout Design

You can use a strong modeling function combining the NURBS curved surface technology with solid modeling and a yield rate calculation function to achieve immediate concept design.

In addition, you can use a 2D sketch to design process concepts such as punching or bending.

Blank Trim Deployment

Blank Trim Deployment

You can perform an easy operation to create a pre-mold planar shape (blank shape) in a short time from a 3D mold shape consisting of a body or face.

In addition, the inverse analysis solver "HYSTAMP (one step FEM)" is used to enable easy and fast creation of a deployed shape.

Furthermore, you can consider an optimal press direction and check expected cracks and creases.

Interference Check

Interference Check

You can check interference with mold parts or model shapes.
Not only interference but also contact or clearance can be checked.
The following states of interference, contact, or clearance can be easily checked: where they occurred, between which parts they occurred, and how much value is related to them.

Drawing Function

Drawing Function

You can perform an easy operation to create the hole shape dimension of a plate with multiple and diverse hole shapes.

In addition, you can perform an easy operation to create a projection drawing from a 3D shape. Attributes of parts can be used to create a cross section, balloon, and parts list.

Options (CAM Functions)

Streamlined production system from model design to drawing

Streamlined production system from model design to drawing

For a 3-axis path created on Space-E/CAM, NC data available for a controller provided by Heidenhain can be output.

3-axis Machining

3-axis Machining

For a 3-axis path created on Space-E/CAM, NC data available for a controller provided by Siemens can be output.

Drilling by Recognizing Shapes

Drilling by Recognizing Shapes

Machining process design supports automation and standardization of machining data creation. This design has the mechanism enabling integration of customers' machining know-how such as various palettes and templates. You can perform an easy operation to create NC data.

Even for complex drilling on a plate, a template can be used to immediately create an optimal machining process.
